Class 37 - RF Construction - 37414

Class 37 - RF Construction - 37414

SKU ACC3152
Availability:
On Pre Order
$347.00 - $347.00
$347.00
$347.00 - $347.00
$347.00

Pre Order Item

This item is on Pre Order, with an expected delivery date of Quarter 4, 2025

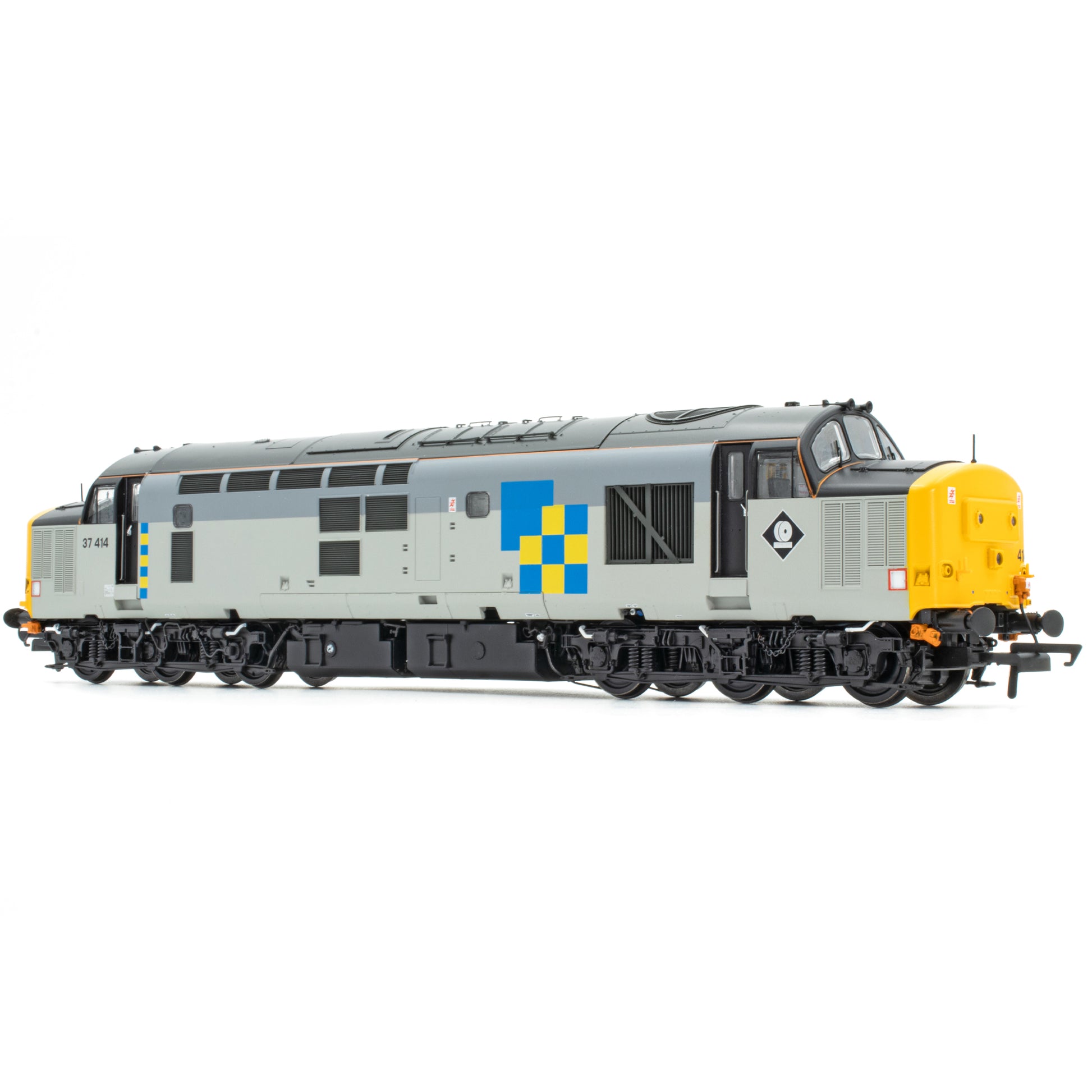

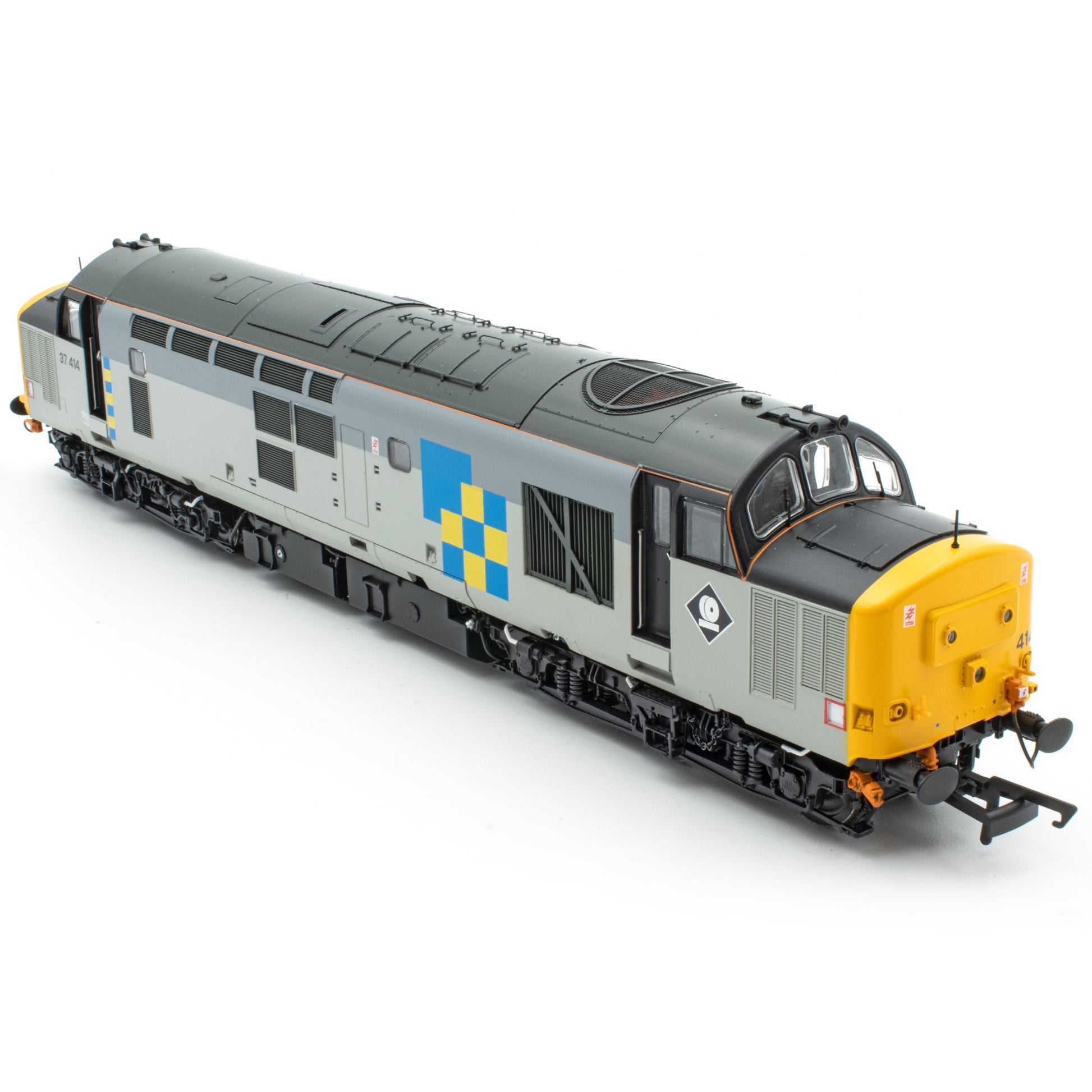

37414 Railfreight Construction

The introduction of Class 156 ‘Super Sprinters’ on the West Highland from January 1989 and on the Far North/Kyle lines in the May triggered an exodus of Class 37/4s to freight work. By the end of that year, Laira, Motherwell and Tinsley had gained allocations, while Immingham and Thornaby both acquired three locos each in the middle of 1990, by which point half the sub class were south of the border. One of these was No. 37414, which was on china clay duties in Cornwall until transferred to the North Lincolnshire depot’s FABI pool that September. This loco, which retained its Western Region-style lamp irons at the No.2 end only, had been repainted in the Roundel triple grey scheme with Distribution decals in August 1989, but quickly swapped these for more appropriate Construction brandings after its move. This saw it mostly outbased at Buxton in the Peak District to haul aggregates, cement and the iconic ICI limestone trains.While it wasn’t completely allergic to passenger work during this period, it moved to Crewe Diesel in November 1992 to join the RCMC Regional Railways North West pool, initially to work Liverpool Lime St/Crewe-Cardiff trains, still wearing its classic Railfreight image. In March 1993 it became the first member of the fleet to receive the new Regional Railways livery along with the name Cathays C&W Works 1846-1993, becoming a stalwart of the North Wales coast and the famed ‘club’ trains from Liverpool and Manchester Victoria. It soldiered on until it was stored by EWS in March 2000 and was scrapped at TJ Thomson’s of Stockton exactly nine years later.

Common Features:

  • Highly detailed OO scale model, 1:76.2
  • Heavy die-cast metal chassis
  • Accurate tumbleholme, nose, cab roof and cantrail curves taken from 3D Laser scan and extensive surveys
  • Timeframe specific details, including but not limited to;
  • Bogies (Fabricated and three variations of Cast)
  • Fuel tanks (As built and with later smooth-sided long range fuel tank)
  • Early Class 37/0 features frost grille, boiler filler panel and access steps
  • Early Class 37/0 features illuminated split headcode displays with a selection of different four-character headcodes
  • Class 37/6 have operational WIPAC light clusters and top headlight and numerous different nose slides all including multiple working socket
  • Three styles of buffer: large round Oleo, oval and squared oval
  • Three styles of nose grilles: as built, refurbished ‘split’ and refurbished ‘single piece’
  • Boiler exhaust, and two styles of plated boiler panel
  • With or without bufferbeam skirts
  • With or without cab roof vents and bodyside windows
  • Nose and roof aerials and antennas (where applicable)
  • Three styles of windscreen: standard, centre toughened and all toughened
  • Three styles of cab interior: as built, refurbished and modern DRS locos
  • Four bufferbeam variations with different piping configurations
  • Door kickplates where applicable

Multiple body and nose slides to accurately represent almost every member of the class, including three variations of cantrail grille: early EE (for D6700-D6704), later EE and RSH

Four roof styles: Original double riveted, single riveted, welded and welded with antennas

Separately applied etched metal and high fidelity plastic detail parts, including grab handles, aerials, steps, wipers, nameplates, crests and more.

Etched metal door kickplates (where applicable), ‘frost’ grille (where applicable) & super fine etched metal roof grille

Scale width wire handrails

Turned brass roof-mounted horns on centre headcode examples

Full underbody tank detail with brackets and pipework

Bogies feature separate footsteps, etched footsteps, brake cylinders, speed recorder, end brake rigging and very fine brake chain

Brake blocks on trucks (bogies) in line with wheels (can be moved for EM/P4 gauges)

Numerous other locomotive-specific details yet to be revealed!

RP25-110 profile OO gauge wheels with fine scale ‘drop in’ EM (18.2mm gauge) and P4 (18.83mm gauge) wheels available separately

Accurate high-fidelity miniature snowploughs

Fully sprung metal buffers, extra-fine factory-installed pipework and screw couplings

Correct height mini-tension-lock couplers with NEM socket as well as a fully detailed bufferbeam

Every model includes PowerPack / Backup Power Capacitor Bank for up to ten seconds of power free running, flicker free lighting and continuous sound

  • High Performance traction, to include;
  • High-quality five-pole motor with two flywheels
  • Metal Helical Gear box for maximum performance and slow speed running
  • Gearing arranged so locomotive can achieve a scale top speed of 100 mph (160 km/h)
  • DCC ready with PowerPack Super-capacitor for uninterrupted power and super low speed running
  • All wheel drive and all wheel pickup

All models include our motorised roof fan with dedicated silky smooth coreless functionality on both DC and DCC.

Lighting and DCC Specifics

Provided DCC ready [21Pin MTX Socket] or Factory DCC Sound Fitted [ESU LokSound 5]

Every model includes PowerPack / Backup Power Capacitor Bank for up to ten seconds of power free running, flicker free lighting and continuous sound as well as independently controlled, smooth coreless motorised fan.

DCC Sound Versions include;

  • ESU LokSound V5 DCC Chip
  • Customised Dual-Speaker Technology with;
  • Large Accurathrash Bass Speaker
  • Smaller 'iphone' style cube for higher frequencies
  • DCC ready with PowerPack Super-capacitor for uninterrupted power and super low speed running

Fully detailed Lighting Pack, including:

  • Directional lighting on DC and DCC
  • Fully functional Headlights per prototype
  • Engine Bay Lighting (with visible Prime Mover)
  • WIPAC light clusters where appropriate with day and night-time settings
  • Separately switched cab lighting and illuminated, details driver’s console, auto off on movement
  • Switchable red tail lights

All models include our motorised roof fan with dedicated silky smooth coreless functionality on both DC and DCC.
