BR 16T Mineral - 1/109 - BR Freight Grey (Original text on black panels) - Pack G

BR 16T Mineral - 1/109 - BR Freight Grey (Original text on black panels) - Pack G

SKU ACC1028
Availability:
On Pre Order
$137.00 - $137.00
$137.00
$137.00 - $137.00
$137.00

Pre Order Item

This item is on Pre Order, with an expected delivery date of Quarter 4, 2024

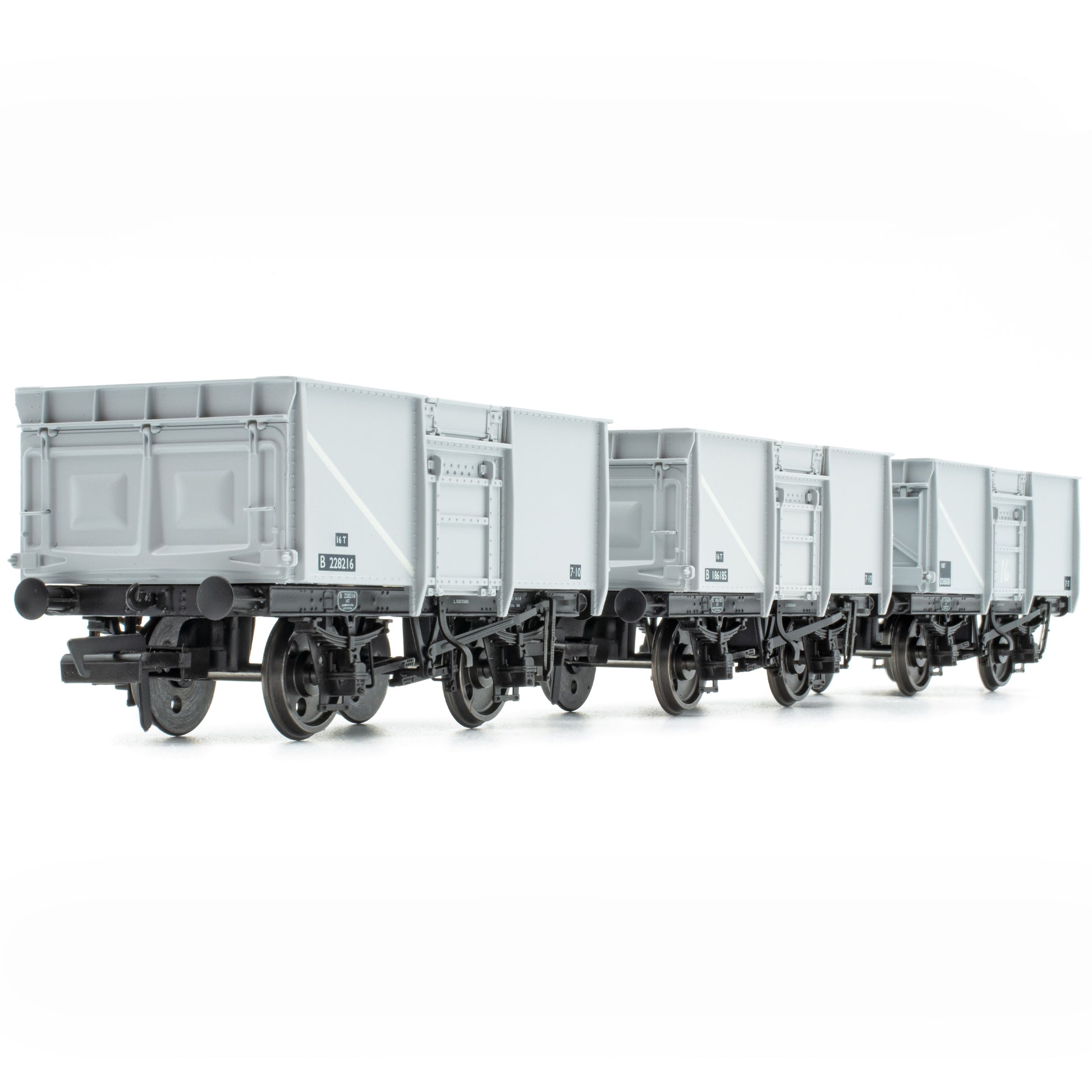

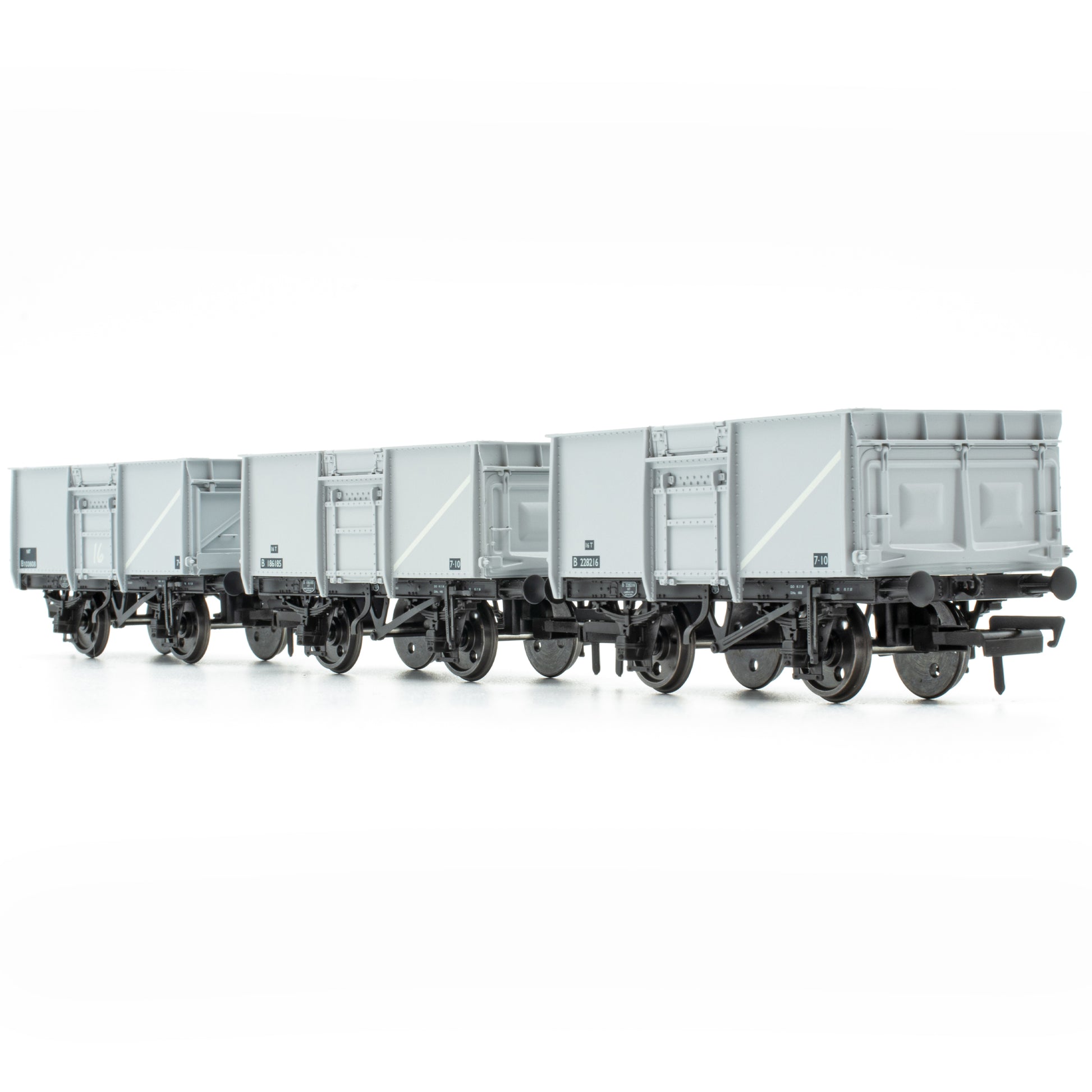

Seen as very much the ‘missing link’ in the ‘Powering Britain’ range, the 16 ton mineral wagon is an essential addition to the Accurascale range to tell the story of coal traffic on the railways throughout the 20th century. The archetypal BR 16 ton all-steel non-hoppered mineral wagon proliferated across the United Kingdom’s railway network during the 1950s and 1960s and there was probably not a siding, freight yard or industrial railway system in the country that did not house at least an example or three of these vitally important, yet mundane railway vehicles.

  • Model Specification:
  • Die-cast metal chassis with plastic body. Weight of 37g (excluding coal load).
  • Scale length of 78mm over buffers, and 34.53mm wide.
  • Wheelbase of 36mm, allowing operation over a minimum radius of 371mm (1st radius set-track).
  • Separately fitted side doors, top doors and end doors.
  • Metal 3-hole wheels; chemically blackened 00 Gauge RP25-110 standard, set in blackened brass bearings and conforming to Accurascale standards of 14.4mm back-to-back, on 2mm axles over 26mm pinpoints.
  • Eroded metal, plastic and wire detail parts, including handrails, grab handles, side-door handles, lamp brackets, brake gear, draw gear, 3-link and Instanter couplings.
  • Turned metal sprung buffers.

Lighting and DCC Specifics
